DESCRIPTION

The Vent Protector Fitting (VEP) is used to protect tubes that are exposed to atmospheric pressure, instruments that are open to atmospheric pressure and every tube outlet that is open to atmospheric pressure.

CLEANING AND PACKAGING:

HAM-LET VEP are treated with Passivation, Cleaning and Packaging (Procedure 8075). HAM-LET VEP with Face-Seal End Connections are treated with Oxygen Cleaning and Packaging.

TESTING

The VEP designs have been tested for Proof, Burst and Leakage. Every VEP is factory tested for proper assembly.

METHOD OF OPERATION

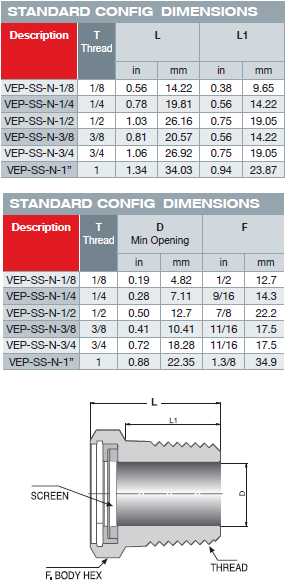

The end of the fitting has a filter screen of 40 mesh, made of 316 st.st. This screen prevents foreign objects such as insects, from entering the system and causing damage. This fitting is available in 316 st.st and in brass, in sizes from 1/8’’ to 1’’. The threads are NPT, BSPT or others, according to request.
